Description

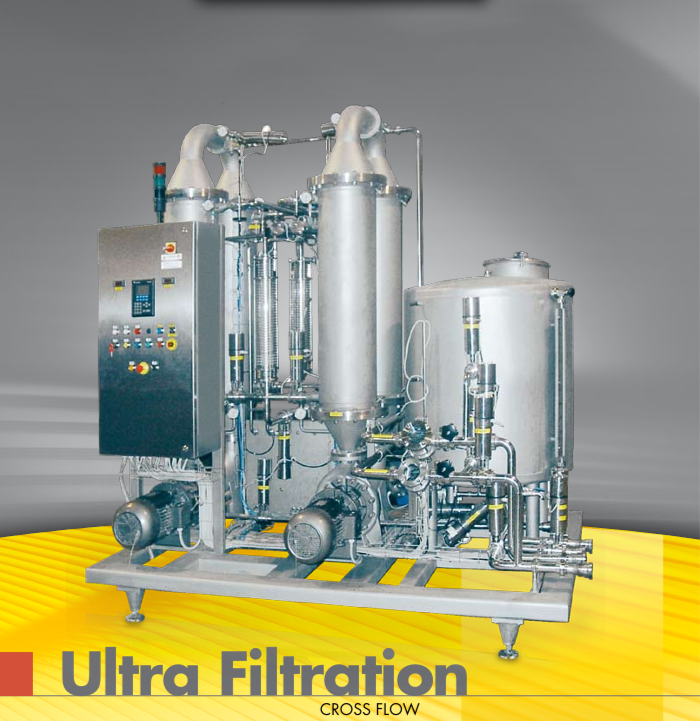

Asepsystems Ultra Filtration with Cross Flow technology, capacity up to 800 m2 for clarified fruit and vegetable juices. Machine for batch operation, designed for the filtration of fully enzymed juices with ceramic membranes of different pore size depending the product to be clarified. The Ultra Filtration with Cross Flow filter is normally used after previous pre-clarification of minimum 0.1 mm filter size or after centrifugation for the final clarifications of fruit and vegetable juices as: apple juice, pomegranate juice, carrot juice, grape juice and berries juices. The highly-porous and rigid ceramic body contain several channels running parallel to its longitudinal axis. The membrane is sintered on the channel surface. The liquid to be treated flows through each channel along the membrane and the filtred comes out on the lateral surface of the element. The membrane pores, for the ultra filtration, are normally between 1 and 200 nm and the area of filtration surface and the pore size depend on the product and the molecules to be separate. The needs of the customer determine the dimensions, size and quality of the membrane. The machine is normally done on a skit, pre-assembled and tested in the Asepsystems workshop. The ceramic membrane, use are 4-6 times more resistant then the organic membrane. The main components of the filter are: . 5.5. frame to support all the parts of the machine; . Receiving tank; . Filtration unit in 5.5. containing the ceramic membranes; . Pump for circulation of the retained liquid; . C.I.P predisposition system; . Control panel. Advantages: . High efficiency; . Long life of the ceramic membranes; . Possibility to choose different pore size of ceramic membrane; . Automatic filtration; . Single filtration allowed to obtain a clarified juice; . Total elimination from the process of costly, pollutant filtration aids. Using the most advanced computerized solid modelling technical, the design has been optimised to give to the Customer the maximum personalization freedom in the machine configuration. “Our technology to allow the Customer to prepare the best product“
